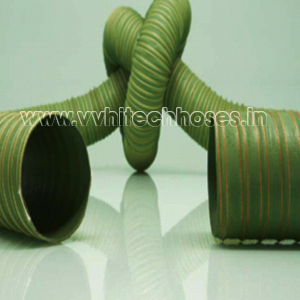

Viton Hose

Viton Hose
Viton Hose
Product Code : 352-VV09
Brand Name : VV
Product Description

352      VV09     Viton Hose



0

0

GRN

SW

0

0

0

FLX

0

HT

0

0

0

0

0

0

0

DL

0



Detailed view                                                                        Recommended connectors



Description

Two-ply, highly flexible, very lightweight, vulcanized hose made of Viton®-coated glassfiber fabric. Hidden internal spring steel spiral and two external cords made of special yarn. A finely crafted specialist product of high quality

using high-grade raw materials. Highly suitable for use in medium temperature range for conveying aggressive gaseous media and aggressive solids such as dusts, powders, and fibers.



Properties

• Two-ply

• Smooth interior

• Good flow characteristics

• Good chemical resistance

• UV-resistant

• Superior heat resistance

• Superior cold resistance

• Highly flexible, also in cold temperatures

• Very lightweight

• Non-kinking

• Small bending radii



Sample applications :Chemicals, mechanical and plant engineering, and steam extraction.



Length : Standard length: 4 m..



Temperature range:    â€“40 °C to +220 °C


Other information

Color: green.

Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.



Technical Data:



Article no.

Inner diameter

(mm)

Weight

(g/m)

Pressure

(bar)

Vacuum

(mm water column)

352-0019-3101

19

190

2.8

6,500

352-0022-3101

22

210

2.8

6,500

352-0025-3101

25

230

2.8

6,500

352-0032-3101

32

280

2.7

6,000

352-0038-3101

38

305

2.6

6,000

352-0041-3101

41

310

2.6

5,500

352-0044-3101

44

320

2.6

5,500

352-0051-3101

51

360

2.6

5,200

352-0055-3101

55

420

2.6

5,200

352-0057-3101

57

430

2.5

4,900

352-0060-3101

60

470

2.5

4,900

352-0063-3101

63

485

2.4

4,500

352-0065-3101

65

500

2.4

4,500

352-0070-3101

70

540

2.1

4,400

352-0076-3101

76

580

2.1

4,300

352-0080-3101

80

620

2.1

4,200

352-0083-3101

83

630

2.1

4,100

352-0089-3101

89

690

2.0

4,000

352-0095-3101

95

730

2.0

4,000

352-0102-3101

102

770

1.9

3,500

352-0108-3101

108

810

1.9

3,300

352-0110-3101

110

830

1.7

3,200

352-0114-3101

114

845

1.5

3,000

352-0121-3101

121

885

1.5

2,300

352-0127-3101

127

925

1.4

2,300

352-0130-3101

130

980

1.4

2,200

352-0140-3101

140

1,000

1.3

2,000

352-0152-3101

152

1,200

1.2

1,700

352-0160-3101

160

1,300

1.1

1,400

352-0165-3101

165

1,350

1.1

1,300

352-0178-3101

178

1,430

1.0

1,200

352-0180-3101

180

1,550

1.0

1,000

352-0203-3101

203

1,650

0.7

900

352-0216-3101

216

1,720

0.6

800

352-0229-3101

229

1,890

0.5

800

352-0254-3101

254

2,090

0.5

700

352-0305-3101

305

2,610

0.3

500



Other dimensions

upon request





Measured at +20 °C ambient temperature
