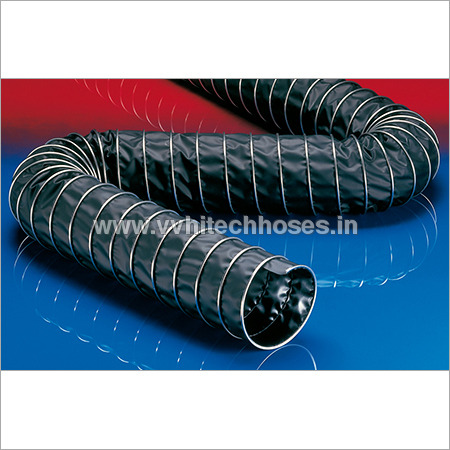

Viton Hose

Viton Hose
Viton Hose
Product Code : 351-VV01
Product Description

351         VV01       Viton Hose



CP

0

AS-BLK

GIS

RS

0

0

FLX

0

HT

0

0

0

0

0

0

0

0

0

6.0-6.0





Applications:

Electrically conductive suction and blast hose, especially suitable:

• For transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion prediction)

• For aggressive solids such as dust, powder and fibres

• For aggressive gaseous media such as vapors and smoke

As bellows and compensator

• For de-dusting and suction plants



Properties

According to German TRBS 2153 electrically conductive wall: Electrical and surface resistance

< 104  We recommended for transporting inflammable bulk materials

Very good heat resistance

Highly flexible + compressible 4:1

Abrasion prediction via external clamp profile

• Firm clamping of the wall in clamp profile

Good resistance to mineral oils and gasoline

Good resistance to alkalis and acids

Good resistance to chemicals

Good resistance to UV and ozone

• Small bending radius

Kink-proof

• Light weight

Conforms to the requirements of the European ATEX Directive

Conform to RoHS guideline



Temperature Range

-20 °C approx. to +210 °C approx.



Design, material

Patented CP design

1. Clamp profile supporting spiral: galvanized steel

2. Wall: VITONR coated polyester fabric





I.D.



O.D.

Rec. operating limits

Overpressure     Vacuum

Bending

Radius



Weight

Production

Lengths



Order No.

mm

mm

bar

bar

mm

kg/m

m



38

50

0,805

0,450

40

0,480

6

351-0038-0000

40

52

0,785

0,440

42

0,530

6

351-0040-0000

50

62

0,700

0,380

50

0,640

6

351-0050-0000

55

67

0,660

0,350

54

0,700

6

351-0055-0000

60

72

0,630

0,320

58

0,760

6

351-0060-0000

65

77

0,600

0,290

62

0,810

6

351-0065-0000

70

82

0,570

0,260

66

0,870

6

351-0070-0000

75

87

0,545

0,230

70

0,930

6

351-0075-0000

80

92

0,525

0,200

74

0,980

6

351-0080-0000

90

102

0,485

0,140

82

1,100

6

351-0090-0000

100

112

0,320

0,120

78

0,900

6

351-0100-0000

110

122

0,300

0,105

85

0,980

3 6

351-0110-0000

115

127

0,290

0,097

89

1,025

3 6

351-0115-0000

120

132

0,280

0,090

92

1,070

3 6

351-0120-0000

125

137

0,275

0,085

96

1,110

3 6

351-0125-0000

130

142

0,270

0,075

99

1,150

3 6

351-0130-0000

140

152

0,255

0,060

106

1,230

3 6

351-0140-0000

150

162

0,175

0,050

113

0,880

3 6

351-0150-0000

160

172

0,165

0,045

120

0,930

3 6

351-0160-0000

170

182

0,160

0,040

127

0,990

3 6

351-0170-0000

175

187

0,155

0,040

131

1,020

3 6

351-0175-0000

180

192

0,155

0,040

134

1,040

3 6

351-0180-0000

200

212

0,145

0,030

148

1,160

3 6

351-0200-0000

215

227

0,135

0,030

159

1,240

3 6

351-0215-0000

225

237

0,135

0,025

166

1,300

3 6

351-0225-0000

250

262

0,100

0,025

183

1,440

3 6

351-0250-0000

275

287

0,095

0,020

201

1,580

3 6

351-0275-0000

300

312

0,090

0,015

218

1,720

3 6

351-0300-0000

315

327

0,080

0,015

228

1,780

3 6

351-0315-0000

325

337

0,070

0,015

236

1,850

3 6

351-0325-0000

350

362

0,065

0,015

253

2,000

3 6

351-0350-0000

375

387

0,065

0,010

270

2,130

3 6

351-0375-0000

400

412

0,060

0,010

288

2,280

3 6

351-0400-0000

450

462

0,055

0,010

323

2,560

3 6

351-0450-0000

500

512

0,035

0,005

358

2,840

3 6

351-0500-0000

600

612

0,030

0,005

428

3,400

3

351-0600-0000

700

712

0,025

0,002

498

3,960

3

351-0700-0000

750

762

0,025

0,002

533

4,243

3

351-0750-0000

800

812

0,025

0,002

568

4,520

3

351-0800-0000

900

912

0,020

0,001

638

5,090

3

351-0900-0000

1000

1012

0,020

0,001

708

5,650

3

351-1000-0000
