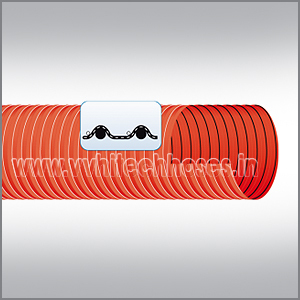

Silcon Hose

Silcon Hose
Silcon Hose
Product Code : 496-VV12
Brand Name : VV
Product Description

 Silcon Hose

Application :
Extreme temperature ducting for conveying air and fumes when maximum flexibility is required. For chemical environment and working conditions at extremes of temperature. Ideal for air intake to cool motors.

Design material
Technical Description : Silicon-Coated glass fiber cord , red , reinforced by one white glass fiber yarns corrugated cover.

Reinforcement : Steel helix , visible.

Properties:

• Light weight and easy to handle.
• Highly compressible to minimize storage
• Good low temperature flexibility
• Excellent heat aging characteristics.
• Resistance to many oils, greases, solvents , and industrial chemicals in the vapour phase at moderate concentration.


Temperature Range:
-60° C to + 300 ° C

ID

Wall

Working

Max

Bending

Weight

Length

MM

Thickness

Pressure

Vacuum

Radius

Kg/M





MM

Bar

Bar

MM





19

  0.35           ±0.03

1.43

0.50

10

0.12

2.5

25

0.35         ±0.03

1.38

0.50

12

0.14

4

32

0.35         ±0.03

1.33

0.50

16

0.17

4

38

0.35         ±0.03

1.23

0.41

19

0.2

4

41

0.35         ±0.03

1.23

0.41

20

0.23

4

44

0.35         ±0.03

1.23

0.41

20

0.26

4

51

0.35         ±0.03

1.23

0.41

22

0.32

4

60

0.35         ±0.03

1.18

0.41

26

0.38

4

63

0.35         ±0.03

0.99

0.33

26

0.4

4

70

0.35         ±0.03

0.99

0.33

26

0.49

4

76

0.35         ±0.03

0.99

0.33

27

0.56

4

80

0.35         ±0.03

0.94

0.30

28

0.59

4

89

0.35         ±0.03

0.94

0.29

29

0.65

4

102

0.35         ±0.03

0.89

0.25

33

0.75

4

114

0.35         ±0.03

0.74

0.22

35

0.92

4

121

0.35         ±0.03

0.74

0.22

35

0.99

4

127

0.35         ±0.03

0.69

0.21

38

1.04

4

140

0.35         ±0.03

0.69

0.16

43

1.3

4

152

0.35         ±0.03

0.69

0.16

43

1.4

4

165

0.35         ±0.03

0.49

0.10

48

1.49

4

178

0.35         ±0.03

0.49

0.10

53

1.53

4

203

0.35         ±0.03

0.49

0.07

57

1.75

4
