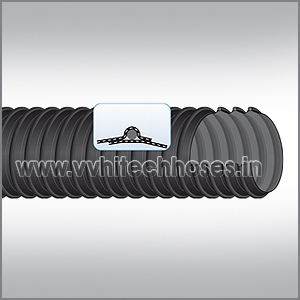

457 VV12 PYE Hose
CP | 0 | BLK | 0 | ABR | SW | 0 | FLX | 0 | HT | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | SM | 0.4-0.4 |
Application:
Transport of hot or cold air for various mechanical and industrial application:
• Hot air for granule drying systems in the plastic industry.
• Flexible conduit for cooling engines ( cool and pure air).
• Flexible conduit for air-conditioning and ventilation systems for motor vehicles and boat.
• Exhaust of solvent fumes ( printing , painting). For handling air and fumes in hard environment.(high temperatures, vibration, chemical attacks).
Advantages :
• Light weight and easy to handle.
• Highly flexible (cross-sectional area maintained when bent).
• Very elastic long-term resistance to the fatiguing effects.
• Excellent resistance to ozone, ageing and abrasion.
• Good resistance to most oils, greases, solvents , industrial chemical in the vapor phase at moderate concentration.
• Impermeable to gases.
• Flexibility at low temperature.
Technical Description :
TPE-Coated polyester cord , black , corrugated. Reinforcement : Steel embedded helix. Temperature Range : -40° C to + 130 ° C.
Technical Data:
ID | Wall | Working | Max | Bending | Weight | Length |
MM | Thickness | Pressure | Vacuum | Radius | Kg/M |
|
| MM | Bar | Bar | MM |
|
|
25 | 0.4 ±0.03 | 1.7 | 0.45 | 18 | 0.11 | 10 |
29 | 0.4 ±0.03 | 1.6 | 0.40 | 21 | 0.13 | 10 |
32 | 0.4 ±0.03 | 1.6 | 0.40 | 21 | 0.15 | 10 |
35 | 0.4 ±0.03 | 1.6 | 0.35 | 24 | 0.16 | 10 |
38 | 0.4 ±0.03 | 1.5 | 0.30 | 28 | 0.24 | 10 |
41 | 0.4 ±0.03 | 1.5 | 0.30 | 28 | 0.26 | 10 |
44 | 0.4 ±0.03 | 1.5 | 0.30 | 28 | 0.29 | 10 |
51 | 0.4 ±0.03 | 1.3 | 0.28 | 35 | 0.32 | 10 |
60 | 0.4 ±0.03 | 1.2 | 0.26 | 42 | 0.39 | 10 |
63 | 0.4 ±0.03 | 1.0 | 0.23 | 49 | 0.4 | 10 |
70 | 0.4 ±0.03 | 1.0 | 0.23 | 70 | 0.45 | 10 |
76 | 0.4 ±0.03 | 0.9 | 1.22 | 53 | 0.48 | 10 |
80 | 0.4 ±0.03 | 0.8 | 0.20 | 56 | 0.54 | 10 |
89 | 0.4 ±0.03 | 0.7 | 0.18 | 62 | 0.61 | 10 |
102 | 0.4 ±0.03 | 0.6 | 0.17 | 70 | 0.69 | 10 |
127 | 0.4 ±0.03 | 0.5 | 0.13 | 88 | 0.88 | 10 |
130 | 0.4 ±0.03 | 0.5 | 0.13 | 91 | 0.9 | 10 |
150 | 0.4 ±0.03 | 0.25 | 0.10 | 105 | 0.99 | 10 |
152 | 0.4 ±0.03 | 0.25 | 0.10 | 105 | 0.99 | 10 |
160 | 0.4 ±0.03 | 0.25 | 0.10 | 112 | 1.05 | 10 |
180 | 0.4 ±0.03 | 0.25 | 0.10 | 126 | 1.18 | 10 |
200 | 0.4 ±0.03 | 0.2 | 0.08 | 140 | 1.62 | 10 |
203 | 0.4 ±0.03 | 0.2 | 0.08 | 140 | 1.65 | 10 |
250 | 0.4 ±0.03 | 0.12 | 0.07 | 175 | 2.03 | 10 |
300 | 0.4 ±0.03 | 0.08 | 0.05 | 210 | 2.44 | 10 |
350 | 0.4 ±0.03 | 0.08 | 0.05 | 210 | 2.44 | 10 |
400 | 0.4 ±0.03 | 0.07 | 0.04 | 280 | 3.25 | 5 |
500 | 0.4 ±0.03 | 0.06 | 0.03 | 350 | 4.05 | 5 |
