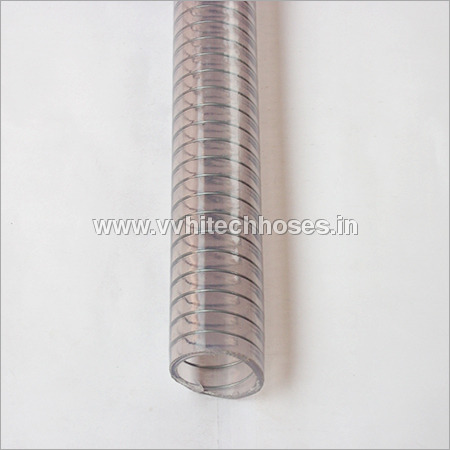

PVC Hose Pipe

PVC Hose Pipe
PVC Hose Pipe
Product Code : 253-VV01
Product Description

253       VV01       PVC Hose Pipe



BD

FG

TR

SW

LS

0

ESD

0

0

0

0

0

0

0

0

0

0

0

SM

3





Suction and transport hose; Super-heavy, smooth interior and exterior, vacuum-proof



Applications:

Universal suction and transport hose, especially suitable:

•    for solids such as powder, chips and pellets

•    for gaseous and liquid media

•    for pressure and vacuum pumps

•    for industry, agriculture and construction engineering

•    for reducing the ground water level



Properties:

•    smooth interior and exterior

•    very high pressure, vacuum and compression resistance

•    food grade wall

•    good resistance to UV and ozone

•    free of phthalate

•    conform to RoHS guideline

•    capable of electro-static discharge by grounding the spiral





Temperature Range:

•    -20 °C approx. to +70 °C approx.

•    short time to +80 °C approx.



Design, Material:

1. spring steel wire spiral embedded in wall

2. smooth interior and exterior wall: high grade soft PVC - transparent

3. wall thickness 3 to 8 mm approx., depending on diameter


Delivery Variants:

•    Transparent (Standard)

•    Special Colours: transparent, full coloured

•    Customer-specific product marking



Technical Data:





I.D. mm





O.D. mm



Rec. oper ating limits Overpressure Vacuum bar               bar



Bending Radius mm



Weight kg/m



Stock Lengths m

Further

Production Lengths m







Order No.

10

16

7,000

0,850

64

0,150

30 60

-

253-0010-0000

12

18

6,000

0,850

72

0,180

30 60

-

253-0012-0000

13

19

6,000

0,850

76

0,200

30 60

-

253-0013-0000

14

20

6,000

0,850

80

0,210

60

-

253-0014-0000

16

22

6,000

0,850

90

0,250

30 60

-

253-0016-0000

18

24

5,000

0,850

98

0,290

30 60

-

253-0018-0000

19

25

5,000

0,850

100

0,320

30 60

-

253-0019-0000

20

26

5,000

0,850

104

0,350

30 60

-

253-0020-0000

22

28

5,000

0,850

112

0,380

30 60

-

253-0022-0000

25

32

5,000

0,850

128

0,500

30 60

-

253-0025-0000

30

38

4,000

0,850

152

0,590

30 60

-

253-0030-0000

32

41

4,000

0,850

164

0,650

30 60

-

253-0032-0000

35

44

4,000

0,850

176

0,700

30 60

-

253-0035-0000

38

47

4,000

0,850

188

0,800

15 30

-

253-0038-0000

40

50

4,000

0,850

200

0,870

15 30

-

253-0040-0000

42

52

4,000

0,800

208

0,970

15 30

-

253-0042-0000

45

55

4,000

0,800

220

1,100

15 30

-

253-0045-0000

48

58

4,000

0,800

232

1,180

-

30

253-0048-0000

50

60

4,000

0,800

256

1,240

15 30

-

253-0050-0000

60

72

3,600

0,800

288

1,700

15 30

-

253-0060-0000

63

75

3,600

0,800

300

1,800

15 30

-

253-0063-0000

65

77

3,600

0,700

308

1,860

15 30

-

253-0065-0000

70

83

3,600

0,700

332

2,000

15 30

-

253-0070-0000

75

89

3,600

0,700

356

2,150

-

30

253-0075-0000

76

90

3,600

0,700

360

2,200

15 30

-

253-0076-0000

80

94

3,600

0,700

372

2,350

10 20

-

253-0080-0000

90

104

3,000

0,700

416

2,900

10 20

-

253-0090-0000

102

116

2,400

0,700

464

3,350

10 20

-

253-0102-0000
