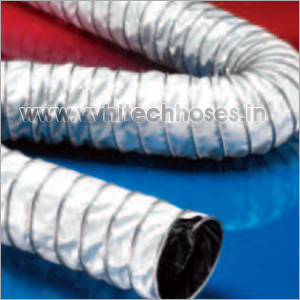

PTFE Hose

PTFE Hose
PTFE Hose
Product Code : 375-VV01
Product Description

375      VV01     PTFE Hose



CP

0

AS-GRY

SSS

RS

0

0

FLX

0

0

0

0

0

0

0

0

0

0

0

6.0-6.0



Electrically  conductive  suction  and  blast  hose; TEFLO < 106  Ω, super-light + compressible, highly chemical resistant

Applications:

Electrically conductive suction and blast hose, especially suitable:

for transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion prediction)

for aggressive solids such as dust, powder and fibers

for aggressive gaseous media such as vapors and smoke

as bellows and compensator

for de-dusting and suction plants



Properties:

surface resistance, PTFE film < 106 W

double-layer

very good heat resistance

highly flexible + compressible 4:1

abrasion prediction via external clamp profile

firm clamping of the wall in clamp profile

anti-adhesive

good resistance to alkalis and acids

extremely good resistance to chemicals

good resistance to UV and ozone

small bending radius

kink-proof

light weight

conform to RoHS guideline



Temperature Range:

-150°C approx. to +250°C approx.

short time to +270°C approx.


Design, Material:

patented CP design

1. clamp profile supporting spiral: all-stainless steel (INOX)

2. wall: interior semi-conducting PTFE foil, exterior special-coated glass fabric



Delivery Variants:

cut lengths and special lengths





I.D. mm



O.D. mm

Rec. operating limits

Overpressure  Vacuum bar             bar



Bending

Radius mm



Weight kg/m

Production

Lengths m



Order No.

50

62

0,420

0,300

43

0,610

6

375-0050-1003

55

67

0,400

0,280

47

0,660

6

375-0055-1003

60

72

0,375

0,250

50

0,720

6

375-0060-1003

65

77

0,360

0,230

54

0,770

6

375-0065-1003

70

82

0,340

0,210

57

0,830

6

375-0070-1003

75

87

0,330

0,180

61

0,880

6

375-0075-1003

80

92

0,315

0,160

64

0,940

6

375-0080-1003

90

102

0,290

0,110

71

1,050

6

375-0090-1003

100

112

0,190

0,100

78

0,860

6

375-0100-1003

110

122

0,180

0,085

85

0,950

3 6

375-0110-1003

115

127

0,175

0,080

89

0,990

3 6

375-0115-1003

120

132

0,170

0,075

92

1,030

3 6

375-0120-1003

125

137

0,165

0,070

96

1,070

3 6

375-0125-1003

130

142

0,160

0,060

99

1,110

3 6

375-0130-1003

140

152

0,155

0,050

106

1,190

3 6

375-0140-1003

150

162

0,105

0,040

113

0,860

3 6

375-0150-1003

160

172

0,100

0,035

120

0,910

3 6

375-0160-1003

170

182

0,095

0,030

127

0,970

3 6

375-0170-1003

175

187

0,095

0,030

131

0,990

3 6

375-0175-1003

180

192

0,090

0,030

134

1,020

3 6

375-0180-1003

200

212

0,085

0,025

148

1,130

3 6

375-0200-1003

215

227

0,080

0,020

159

1,210

3 6

375-0215-1003

225

237

0,080

0,020

166

1,270

3 6

375-0225-1003

250

262

0,060

0,020

183

1,400

3 6

375-0250-1003

275

287

0,055

0,015

201

1,540

3 6

375-0275-1003

300

312

0,050

0,010

218

1,680

3 6

375-0300-1003

315

327

0,050

0,010

228

1,780

3 6

375-0315-1003

325

337

0,045

0,010

236

1,850

3 6

375-0325-1003

350

362

0,040

0,010

253

1,950

3 6

375-0350-1003

375

387

0,040

0,010

270

2,130

3 6

375-0375-1003

400

412

0,035

0,010

288

2,230

3 6

375-0400-1003

450

462

0,030

0,005

323

2,500

3 6

375-0450-1003

500

512

0,020

0,005

358

2,770

3 6

375-0500-1003

600

612

0,020

0,005

428

3,320

3

375-0600-1003

700

712

0,015

0,002

498

3,870

3

375-0700-1003

750

762

0,015

0,001

533

4,150

3

375-0750-1003

800

812

0,015

0,001

568

4,420

3

375-0800-1003

900

912

0,015

0,001

638

5,070

3

375-0900-1003

1000

1012

0,010

0,001

708

5,510

3

375-1000-1003
