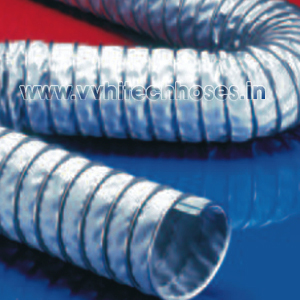

Precious Glass Fabric Hoses

Precious Glass Fabric Hoses
Precious Glass Fabric Hoses
Product Code : 554-VV01
Brand Name : VV
Product Description

554      VV01     Glass Fabric Hose



CP

0

GRY

GIC

RS

0

0

FLX

0

HT

0

0

0

0

0

0

0

DL

0

6.0-6.0



High-temperature suction hose; Double-layer, light, highly flexible + compressible, Ø up to 1000 mm

Applications:

Suction hose, especially suitable:

 For solids such as dust, powder and fibers

 For gaseous media such as vapors and smoke

 For de-dusting and suction plants, flue gas extraction, blast furnace exhaust and welding gas exhaust

 For exhaust gas technique, engine construction, engine warming, aircraft construction and military construction

 As bellows and compensator



Properties

 Double-layer

 Very good heat resistance

 Highly flexible + compressible

 Abrasion prediction via external clamp profile

 Firm clamping of the wall in clamp profile

 Small bending radius

 Kink-proof

 Conform to RoHS guideline



Temperature Range

 -60°C approx. to +450°C approx.

 Short time to +500°C approx.

Design, material

1. Clamp profile supporting spiral: galvanized steel

2. Double-layer wall

Wall: interior and exterior special-coated high temperature fabric

Delivery variants

 Cut lengths and special lengths

 Stainless steel (INOX) clamp profile

 Customized designs with special clamp profile supporting spiral pitch and wall materials


Technical Data:



I.D. mm



O.D. mm

Rec. Operating Limits

Vacuum bar

Bending

Radius mm



Weight kg/m

Production

Lengths m



Order No.

75

87

0,230

70

1,340

6

554-0075-0000

80

92

0,200

74

1,420

6

554-0080-0000

90

102

0,140

82

1,580

6

554-0090-0000

100

112

0,120

101

1,290

6

554-0100-0000

110

122

0,105

110

1,420

3 6

554-0110-0000

115

127

0,097

115

1,480

3 6

554-0115-0000

120

132

0,090

119

1,540

3 6

554-0120-0000

125

137

0,085

123

1,600

3 6

554-0125-0000

130

142

0,075

128

1,660

3 6

554-0130-0000

140

152

0,060

137

1,780

3 6

554-0140-0000

150

162

0,050

113

1,340

3 6

554-0150-0000

160

172

0,045

120

1,460

3 6

554-0160-0000

170

182

0,040

127

1,550

3 6

554-0170-0000

175

187

0,040

131

1,590

3 6

554-0175-0000

180

192

0,040

134

1,630

3 6

554-0180-0000

200

212

0,030

148

1,810

3 6

554-0200-0000

215

227

0,030

159

1,940

3 6

554-0215-0000

225

237

0,025

166

2,030

3 6

554-0225-0000

250

262

0,025

183

2,250

3 6

554-0250-0000

275

287

0,020

201

2,470

3 6

554-0275-0000

300

312

0,015

218

2,690

3 6

554-0300-0000

315

327

0,015

228

2,820

3 6

554-0315-0000

325

337

0,015

235

2,910

3 6

554-0325-0000

350

362

0,015

253

3,130

3 6

554-0350-0000

375

387

0,010

271

3,350

3 6

554-0375-0000

400

412

0,010

288

3,560

3 6

554-0400-0000

450

462

0,010

323

4,000

3 6

554-0450-0000

500

512

0,005

358

4,440

3 6

554-0500-0000

600

612

0,005

428

5,320

3

554-0600-0000

700

712

0,002

498

6,200

3

554-0700-0000

750

762

0,002

533

6,640

3

554-0750-0000

800

812

0,002

568

7,070

3

554-0800-0000

900

912

0,001

638

7,950

3

554-0900-0000

1000

1012

0,001

708

8,830

3

554-1000-0000
