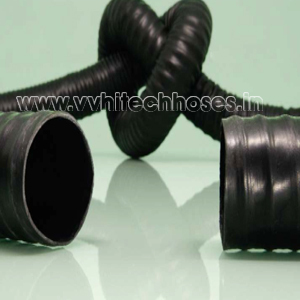

Neoprene Hose

Neoprene Hose
Neoprene Hose
Product Code : 427-VV09
Brand Name : VV
Product Description

427    VV09    Neoprene Hose





TL

0

BLK

SW

0

0

0

FLX

0

HT

0

0

0

0

0

0

0

0

0



Sleeve                                                             Recommended connectors



Description

Reinforced, vibration-resistant, multiple-ply, vulcanized hose made of neoprene-coated polyamide fabric with an

additional outer cover of neoprene rubber. Hidden internal spring steel spiral and cord made of special yarn. A finely crafted specialist product of high quality using high-grade raw materials.

For universal deployment in rugged applications in the medium temperature range for hot and cold air, gases,

vapors, dusts, powders, and fibers as well as under vibration and oscillating conditions.



Properties

• Multiple-ply

• Reinforced

• Smooth interior

• Vibration-resistant

• Good flow characteristics

• Superior heat resistance

• Superior cold resistance

• Flexible, also in cold temperatures

• Lightweight

• Non-kinking

• Vacuum-resistant



Sample applications :Vehicle construction, mechanical and plant engineering, engine technology, turbocharger hose.

Length                      :Standard length: 4 m.

According to specifications.

Temperature range:    â€“35 °C to +125 °C Other information : Color: black.

Variants: spiral-free ends (sleeves), expanded sleeves, reduced sleeves.


echnical Data:



Article no.



Inner diameter

(mm)



Weight

(kg/m)



Bending radius

(mm)



Pressure

(bar)

Vacuum

(mm water column)

427-0019-3121

19

0.121

19

2.5

7,000

427-0022-3121

22

0.146

22

2.5

7,000

427-0025-3121

25

0.167

25

2.5

7,000

427-0032-3121

32

0.207

32

2.5

5,500

427-0038-3121

38

0.242

38

2.5

5,500

427-0041-3121

41

0.268

41

2.5

5,500

427-0044-3121

44

0.293

44

2.4

5,000

427-0051-3121

51

0.328

51

2.4

5,000

427-0057-3121

57

0.380

57

2.3

4,500

427-0060-3121

60

0.395

60

2.3

4,500

427-0063-3121

63

0.408

63

2.2

4,500

427-0065-3121

65

0.465

65

2.2

4,500

427-0070-3121

70

0.500

70

2.2

4,000

427-0076-3121

76

0.541

76

2.1

4,000

427-0080-3121

80

0.576

80

2.1

4,000

427-0083-3121

83

0.587

83

2.1

4,000

427-0089-3121

89

0.627

89

2.1

4,000

427-0095-3121

95

0.655

95

2.0

4,000

427-0102-3121

102

0.702

102

1.8

3,000

427-0108-3121

108

0.845

108

1.8

2,500

427-0110-3121

110

0.890

110

1.7

2,500

427-0114-3121

114

0.903

114

1.7

2,500

427-0121-3121

121

0.937

121

1.6

2,000

427-0127-3121

127

0.989

127

1.5

1,800

427-0130-3121

130

1.002

130

1.5

1,700

427-0140-3121

140

1.087

140

1.4

1,600

427-0152-3121

152

1.265

152

1.1

1,500

427-0160-3121

160

1.305

160

1.1

1,400

427-0165-3121

165

1.402

165

1.0

1,300

427-0178-3121

178

1.466

178

0.8

1,200

427-0180-3121

180

1.520

180

0.7

1,100

427-0203-3121

203

1.599

203

0.6

1,000

427-0254-3121

254

2.047

254

0.4

700

427-0305-3121

305

2.496

305

0.2

500



Other dimensions

upon request





Measured at +20 °C ambient temperature
