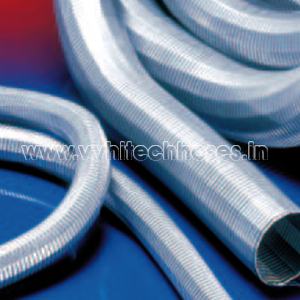

Metal Hose

Metal Hose
Metal Hose
Product Code : 521-VV01
Brand Name : VV
Product Description

Metal Hose

Applications:
Suction hose, especially suitable:
For solids such as powder, chips and pellets
For gaseous media
For de-dusting and suction plants, air conditioning and ventilation
For transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion predection)

Design material

Profiled metal band, galvanised steel
Hooked profile
Seal: special fibre

Delivery variants
Without sealing or with rubber sealing
On request assembled with connection pieces, flanges or couplings
As a pre-assembled hose system with CONNECT Connectors

Properties:
  • According to German TRBS 2153 electrically conductive wall: Electrical and surface resistance < 10_3 W, recommended for transporting inflammable bulk materials
  • Flexible
  • Abrasion-proof
  • Very robust
  • Conforms to the requirements of the European ATEX Directive
  • Conform to RoHS guideline
Temperature Range:
• +120 °C approx.

I.D.

O.D.

Bending Radius

Weight

Dimensions

Lengths

Further Production Lengths

Order No.

mm

mm

mm

kg/m

m

m



20

24

100

0,340

-

2,5 5 10

521-0020-0000

25

29

110

0,420

2,5 5 10

-

521-0025-0000

30

34

130

0,500

-

2,5 5 10

521-0030-0000

32

36

140

0,530

2,5 5 10

-

521-0032-0000

35

39

150

0,580

2,5 5 10

-

521-0035-0000

38

42

155

0,630

-

2,5 5 10

521-0038-0000

40

45

155

0,700

2,5 5 10

-

521-0040-0000

45

50

165

0,740

-

2,5 5 10

521-0045-0000

50

55

180

0,810

2,5 5 10

-

521-0050-0000

55

60

200

0,900

-

2,5 5 10

521-0055-0000

60

66

215

1,010

2,5 5 10

-

521-0060-0000

65

71

230

1,090

2,5 5 10

-

521-0065-0000

70

76

240

1,170

2,5 5 10

-

521-0070-0000

75

81

255

1,250

2,5 5 10

-

521-0075-0000

80

86

270

1,330

2,5 5 10

-

521-0080-0000

90

97

280

1,780

-

2,5 5 10

521-0090-0000

100

107

300

1,980

2,5 5 10

-

521-0100-0000

110

117

330

2,170

-

2,5 5 10

521-0110-0000

120

127

380

2,360

2,5 5 10

-

521-0120-0000

125

132

400

2,450

2,5 5 10

-

521-0125-0000

130

139

410

2,860

2,5 5 10

-

521-0130-0000

140

149

430

3,070

2,5 5 10

-

521-0140-0000

150

159

460

3,290

2,5 5 10

-

521-0150-0000

160

169

490

3,500

2,5 5 10

-

521-0160-0000

170

179

520

3,720

-

2,5 5 10

521-0170-0000

180

189

545

3,930

2,5 5 10

-

521-0180-0000

200

211

560

5,220

2,5 5 10

-

521-0200-0000

225

236

630

5,860

2,5 5 10

-

521-0225-0000

250

261

700

6,500

2,5 5

-

521-0250-0000

275

286

770

7,130

2,5 5

-

521-0275-0000

300

311

850

7,780

2,5 5

-

521-0300-0000

315

326

890

8,600

-

2,5 5

521-0315-0000

350

368

1420

14,000

-

2,5 5

521-0350-0000

400

418

1620

16,000

-

2,5 5

521-0400-0000

450

468

1820

17,900

-

2,5 5

521-0450-0000

500

518

2020

19,900

-

2,5 5

521-0500-0000

  1. Due to constant R and D dimensions and technical specifications are subject to change without prior notice.
  2. Material availability is subject to M.O.Q
