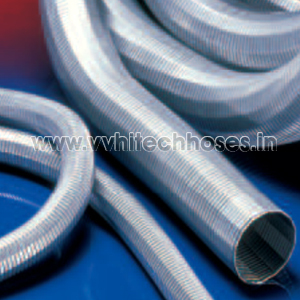

Metal Hose

Metal Hose
Metal Hose
Product Code : 522-VV01
Brand Name : VV
Product Description

522     VV01    Metal Hose



MT

0

AS

GI-GFS

0

0

0

FLX

FR

HT

0

0

0

0

0

0

0

LS

0

2.0-5.5





Applications:

Suction hose, especially suitable:

For solids such as powder, chips and pellets

For gaseous media

For de-dusting and suction plants, air conditioning and ventilation

For transporting inflammable bulk materials and in areas liable to contain explosive mixtures (explosion prediction)



Properties

According to German TRBS 2153 electrically conductive wall: Electrical and surface resistance <  10_3

W, recommended for transporting inflammable bulk materials

Very good heat resistance

Abrasion-proof

Flexible

Very robust

Flame-retardant

Conforms to the requirements of the European ATEX Directive

Conform to RoHS guideline



Temperature Range

+400 °C approx.

Design, material

1.  Profiled metal band, galvanized steel

2.  Hooked profile

3.  Seal: glass fiber

Delivery variants

Cut lengths and special lengths

Without sealing or with rubber sealing

On request assembled with connection pieces, flanges or couplings

As a pre-assembled hose system with CONNECT connectors


echnical Data:





I.D. mm



O.D. mm



Bending Radius mm



Weight kg/m

Dimensions

Lengths m

Further Production

Lengths m



Order No.

20

24

100

350

10

-

522-0020-2880

25

29

110

430

10

-

522-0025-2880

30

34

130

510

10

-

522-0030-2880

32

36

140

550

10

-

522-0032-2880

35

39

150

590

10

-

522-0035-2880

38

42

155

650

10

-

522-0038-2880

40

45

155

680

10

-

522-0040-2880

45

50

165

760

10

-

522-0045-2880

50

55

180

840

10

-

522-0050-2880

55

60

200

900

10

-

522-0055-2880

60

66

215

1,010

10

-

522-0060-2880

65

71

230

1,090

10

-

522-0065-2880

70

76

240

1,170

10

-

522-0070-2880

75

81

255

1,250

10

-

522-0075-2880

80

86

270

1,340

10

-

522-0080-2880

90

97

280

1,850

10

-

522-0090-2880

100

107

300

2,040

10

-

522-0100-2880

110

117

330

2,240

10

-

522-0110-2880

120

127

380

2,440

10

-

522-0120-2880

125

132

400

2,540

10

-

522-0125-2880

130

139

410

2,930

10

-

522-0130-2880

140

149

430

3,130

10

-

522-0140-2880

150

159

460

3,350

10

-

522-0150-2880

160

169

490

3,570

10

-

522-0160-2880

170

179

520

3,720

-

10

522-0170-2880

180

189

545

4,010

10

-

522-0180-2880

200

211

560

5,510

5 10

-

522-0200-2880

225

236

630

6,180

5 10

-

522-0225-2880

250

261

700

6,850

5

-

522-0250-2880

275

286

770

7,520

5

-

522-0275-2880

300

311

850

8,200

5

-

522-0300-2880

315

326

890

8,600

-

5

522-0315-2880

350

368

1420

14,200

-

5

522-0350-2880

400

418

1620

16,000

-

5

522-0400-2880

450

468

1820

18,200

-

5

522-0450-2880

500

518

2020

20,200

-

5

522-0500-2880
