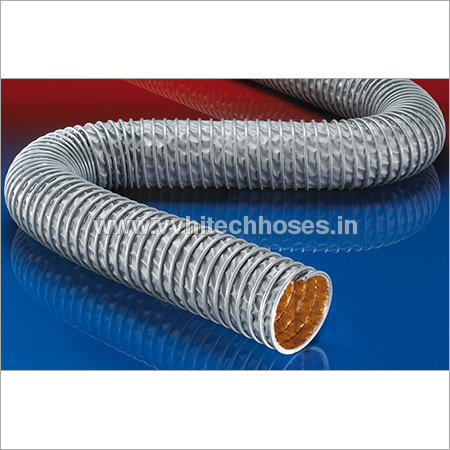

Kapton Hose

Kapton Hose
Kapton Hose
Product Code : 361-VV01
Product Description

361       VV01      Kapton Hose



CP

0

GRY

0

RS

0

0

FLX

0

HT

0

0

0

0

0

0

0

0

0

6.0-6.0





Applications:

Suction and blast hose, especially suitable:

• For aggressive solids such as dust, powder and fibres

• For aggressive gaseous media such as vapors and smoke

• For de-dusting and suction plants

• For the chemical industry

As bellows and compensator



Properties

Very good heat resistance

Highly flexible + compressible 4:1

Abrasion prediction via external clamp profile

• Firm clamping of the wall in clamp profile

Good resistance to alkalis and acids

• Extremely good resistance to chemicals

Good resistance to UV and ozone

• Small bending radius

Kink-proof

• Light weight

Conform to RoHS guideline



Temperature Range   :      -60 °C approx. to +400 °C approx.



Design, material

Patented CP design

1. Clamp profile supporting spiral: galvanized steel

2. WALL: Kapton laminated glass fabric



Delivery variants

Cut lengths and special lengths

• Stainless steel (INOX) clamp profile

Customized designs with special clamp profile supporting spiral pitch and wall materials


Technical Data:



I.D. mm



O.D. mm

Rec. operating limits

Overpressure Vacuum

Bar           bar

Bending

Radius mm



Weight kg/m

Production

Lengths m



Order No.

50

62

0,700

0,370

43

0,680

6

361-0050-0000

55

67

0,680

0,340

47

0,740

6

361-0055-0000

60

72

0,650

0,310

50

0,800

6

361-0060-0000

65

77

0,600

0,285

54

0,860

6

361-0065-0000

70

82

0,520

0,255

57

0,920

6

361-0070-0000

75

87

0,435

0,225

61

0,980

6

361-0075-0000

80

92

0,420

0,210

64

1,040

6

361-0080-0000

90

102

0,385

0,195

71

1,160

6

361-0090-0000

100

112

0,255

0,160

78

0,950

6

361-0100-0000

110

122

0,240

0,130

85

1,040

3 6

361-0110-0000

115

127

0,230

0,120

89

1,090

3 6

361-0115-0000

120

132

0,225

0,113

92

1,130

3 6

361-0120-0000

125

137

0,220

0,105

96

1,180

3 6

361-0125-0000

130

142

0,215

0,090

99

1,220

3 6

361-0130-0000

140

152

0,205

0,075

106

1,310

3 6

361-0140-0000

150

162

0,140

0,700

113

0,950

3 6

361-0150-0000

160

172

0,135

0,056

120

1,010

3 6

361-0160-0000

170

182

0,130

0,056

127

1,070

3 6

361-0170-0000

175

187

0,125

0,048

131

1,100

3 6

361-0175-0000

180

192

0,125

0,048

134

1,130

3 6

361-0180-0000

200

212

0,115

0,040

148

1,250

3 6

361-0200-0000

215

227

0,110

0,032

159

1,340

3 6

361-0215-0000

225

237

0,105

0,032

166

1,400

3 6

361-0225-0000

250

262

0,080

0,027

183

1,560

3 6

361-0250-0000

275

287

0,075

0,020

201

1,710

3 6

361-0275-0000

300

312

0,070

0,016

218

1,860

3 6

361-0300-0000

315

327

0,065

0,016

228

1,950

3 6

361-0315-0000

325

337

0,060

0,015

236

2,030

3 6

361-0325-0000

350

362

0,050

0,015

253

2,160

3 6

361-0350-0000

375

387

0,050

0,012

270

2,260

3 6

361-0375-0000

400

412

0,045

0,012

288

2,470

3 6

361-0400-0000

450

462

0,045

0,005

323

2,770

3 6

361-0450-0000

500

512

0,030

0,005

358

3,070

3 6

361-0500-0000

600

612

0,025

0,005

428

3,680

3

361-0600-0000

700

712

0,020

0,002

498

4,290

3

361-0700-0000

750

762

0,020

0,001

533

4,600

3

361-0750-0000

800

812

0,020

0,001

568

4,900

3

361-0800-0000

900

912

0,015

0,001

638

5,500

3

361-0900-0000

1.000

1.012

0,015

0,001

708

6,110

3

361-1000-0000
