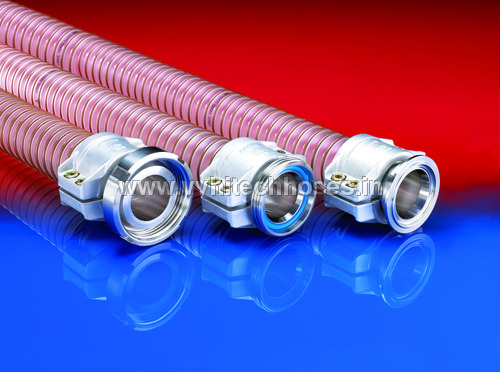

Hydraulic Hose Fittings

Hydraulic Hose Fittings
Hydraulic Hose Fittings
Product Code : 1035-VV01-Connector
Product Description

Being a quality-conscious organization, we are engaged in manufacturing and supplying superior quality High Pressure Hydraulic Hose Fittings that is available in various thicknesses to meet the diverse needs of the clients. These are designed using optimum quality raw materials and advanced machinery. Offered products can withstand high pressure. The offered high-pressure Hydraulic Hose Fittings are highly demanded in the market.

Features:

  • Fine finish

  • Temperature resistance

  • Durability

  • Ruggedness



  Additional Info:



CF

FG

0

GSW

0

0

0

0

0

HT

0

0

0

0

0

0

0

0

0





  • Universal coupling system for externally corrugated spiral hoses

Properties:

  • quick and easy assembly on site
  • special threaded sealing insert adapted to the outer hose contor
  • vibration resistant
  • high tensile strength and tear resistant
  • food grade sealing insert, complies with: FDA 21CFR 177.2600 and 178.2010, EU Directive
  • 2002/72/EC, incl. amending Directives 975/2009 and Regulation No. 10/2011
  •  odourless and tasteless
  •  microbe and hydrolysis resistant
  •   good resistance to mineral oils and gasoline
  • good resistance to chemicals
  • good resistance to UV and ozone
  • free of softener and halogen
  • re-usable
  • very robust
  • conform to RoHS guideline
  • according to the German TRBS 2153 (formerly BGR 132): the metal hose spiral can be fixed to the metal adapter



Temperature Range:

  • -40 °C approx. to +90 °C approx.
  • short time to +125 °C approx.



Design, material:

1. Clamp shells: aluminium

2. Sealing insert: special premium etherpolyurethane (Pre-PUR®)

3. Screw and nut: galvanised steel gunmetal finish

4. Adapter: material acc. to tableHigh Pressure


Delivery variants:

  • as a pre-assembled hose system with a suitable hose



Technical Data:



Size mm

PU

pieces

Spare Part Sealing Insert Dimensions in Stock

Order No.

25

20

1035-0025-2921

32

20

1035-0032-2921

32

20

1035-0032-2922

38

20

1035-0038-2921

38

20

1035-0038-2922

40

20

1035-0040-2921

40

20

1035-0040-2922

50

20

1035-0050-2921

50

20

1035-0050-2922

65

20

1035-0065-2921

65

20

1035-0065-2922

75

20

1035-0075-2921

75

20

1035-0075-2922

80

20

1035-0080-2921

80

20

1035-0080-2922

100

20

1035-0100-2921

100

20

1035-0100-2922






Size mm



I.D. d1 mm



Thread

dairy coupling adapter DIN 2826/11887 Conical Adapter

Stainless  steel 1.4301 (stamped)  = AISI 316Ti

Order No.

25

21

RD 52x1/6

1035-0025-2910

32

28

RD 58x1/6

1035-0032-2910

38

33

RD 65x1/6

1035-0038-2910

40

35

RD 65x1/6

1035-0040-2910

50

44,9

RD 78x1/6

1035-0050-2910

65

58

RD 95x1/6

1035-0065-2910

75

69,6

RD 110x1/4

1035-0075-2910

80

73

RD 110x1/4

1035-0080-2910

100

93,5

RD 130x1/4

1035-0100-2910





Size mm



I.D. d1 mm



Thread

dairy coupling adapter DIN 2826/11887 Threaded adapter

stainless steel 1.4301 (stamped) = AISI 304

Order No.

25

21

RD 52x1/6

1035-0025-2912

32

28

RD 58x1/6

1035-0032-2912

38

33

RD 65x1/6

1035-0038-2912

50

44,9

RD 78x1/6

1035-0050-2912

65

58

RD 95x1/6

1035-0065-2912

75

69,6

RD 110x1/4

1035-0075-2912

80

73

RD 110x1/4

1035-0080-2912

100

93,5

RD 130x1/4

1035-0100-2912





Size mm



I.D. d1 mm



Thread

dairy coupling adapter DIN 2826/11887 Conical adapter Stainless

steel 1.4571 (stamped) = AISI 316Ti

Order No.

25

21

RD 52x1/6

1035-0025-2911

32

28

RD 58x1/6

1035-0032-2911

38

33

RD 65x1/6

1035-0038-2911

40

35

RD 65x1/6

1035-0040-2911

65

58

RD 95x1/6

1035-0065-2911

75

69,6

RD 110x1/4

1035-0075-2911

80

73

RD 110x1/4

1035-0080-2911

100

93,5

RD 130x1/4

1035-0100-2911







Size mm



I.D. d1 mm



Thread

dairy coupling adapter DIN 2826/11887 Threaded adapter

Stainless  steel 1.4571 (stamped) = AISI 316Ti

Order No.

25

21

RD 52x1/6

1035-0025-2913

32

28

RD 58x1/6

1035-0032-2913

38

33

RD 65x1/6

1035-0038-2913

40

35

RD 65x1/6

1035-0040-2913

50

44,9

RD 78x1/6

1035-0050-2913

65

58

RD 95x1/6

1035-0065-2913

75

69,6

RD 110x1/4

1035-0075-2913

80

73

RD 110x1/4

1035-0080-2913

100

93,5

RD 130x1/4

1035-0100-2913




Size mm



Thread

Adapter DIN ISO 228 threaded adapter aluminium

Order No.

25

G 1

1035-0025-2917

32

G 1 1/4

1035-0032-2917

38

G 1 1/2

1035-0038-2917

40

G 1 1/2

1035-0040-2917

50

G 2

1035-0050-2917

65

G 2 1/2

1035-0065-2917

75

G 3

1035-0075-2917

80

G 3

1035-0080-2917

100

G 4

1035-0100-2917









Size

mm



Thread

Adapter DIN ISO 228, threaded adapter Electro-galvanised steel

Order No.

25

G 1

1035-0025-2918

32

G 1 1/4

1035-0032-2918

38

G 1 1/2

1035-0038-2918

40

G 1 1/2

1035-0040-2918

65

G 2 1/2

1035-0065-2918

75

G 3

1035-0075-2918

100

G 4

1035-0100-2918









Size

mm



Thread

Adapter DIN ISO 228, threaded adapter Stainless  steel 1.4301 (stamped) =

AISI 304 Order No.

25

G 1

1035-0025-2919

32

G 1 1/4

1035-0032-2919

38

G 1 1/2

1035-0038-2919

40

G 1 1/2

1035-0040-2919

50

G 2

1035-0050-2919

65

G 2 1/2

1035-0065-2919

75

G 3

1035-0075-2919

80

G 3

1035-0080-2919

100

G 4

1035-0100-2919







Size

mm



Thread

Adapter DIN ISO 228, threaded adapter Stainless  steel 1.4404 (stamped) =

AISI 316L Order No.

25

G 1

1035-0025-2920

32

G 1 1/4

1035-0032-2920

38

G 1 1/2

1035-0038-2920

40

G 1 1/2

1035-0040-2920

50

G 2

1035-0050-2920

65

G 2 1/2

1035-0065-2920

75

G 3

1035-0075-2920

80

G 3

1035-0080-2920

100

G 4

1035-0100-2920


Size mm

I.D. d1 mm

Adapter TRI-CLAMP DIN 32676 Stainless  steel 1.4404 (stamped) = AISI 316L Order No.

25

26

1035-0025-2914

32

32

1035-0032-2914

40

38

1035-0040-2914

50

50

1035-0050-2914

65

66

1035-0065-2914

80

81

1035-0080-2914

100

100

1035-0100-2914







Size mm

I.D. d1 mm

Outer-Ø Flange

Adapter Aseptic DIN 11864-3, sealing type A, clamp Stainless steel 1.4404 (stamped) = AISI 316L  Order No.

25

26

50,5

1035-0025-2915

32

32

50,5

1035-0032-2915

40

38

64

1035-0040-2915

50

50

77,5

1035-0050-2915

65

66

91

1035-0065-2915

80

81

106

1035-0080-2915

100

100

130

1035-0100-2915









Size

mm

I.D. d1

mm



Thread

Adapter Aseptic DIN 11864-3, sealing type A, connector / flanged

adapter Stainless  steel 1.4404 (stamped) = AISI 316L  Order No.

25

26

RD 52x1/6

1035-0025-2916

32

32

RD 58x1/6

1035-0032-2916

40

38

RD 65x1/6

1035-0040-2916

50

50

RD 78x1/6

1035-0050-2916

65

66

RD 95x1/6

1035-0065-2916

80

81

RD 110x1/4

1035-0080-2916

100

100

RD 130x1/4

1035-0100-2916
