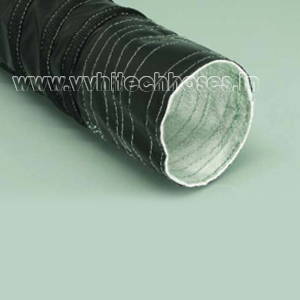

Glass Fabric Hose

Glass Fabric Hose
Glass Fabric Hose
Product Code : 564-VV09
Brand Name : VV
Product Description

564-VV09-Glass Fabric Hose

Description:
Two-ply, flexible high-temperature spiral hose made of heat-resistant technical textile fabric with a spring steel spiral covered by scuff protection. A finely crafted specialist sewn product of high quality using high-grade raw materials. Seamless and smooth inside surface thanks to special manufacturing process. Highly suitable for conveying very hot and very cold air, cold and hot gases as well as vapors.

Sample applications:

High-temperature suction and exhaust technology.

Length Standard length: 5 m. According to specifications.

Color: silver with black scuff protection.

Extras: end rings instead of end sleeves.

Properties:  • Two-ply • Flexible • Smooth interior • Superior insulation • Durable • High tensile strength • Compressible • With scuff protection • Large diameters available • Continuous connection possible • Spiral-free sleeves

Temperature Range: –60 °C to +250 °C

Article no.

Inner diameter
(mm)

Spiral spacing
(mm)

Bending radius
(mm)

Pressure
(mm water column)

Vacuum
(mm water column)

564-0100-3201

100

50

100

Upon request

600

564-0127-3201

127

50

127

600

564-0152-3201

152

50

152

600

564-0180-3201

180

50

180

600

564-0203-3201

203

50

203

600

564-0254-3201

254

50

254

540

564-0305-3201

305

50

305

540



Other dimensions upon request





Measured at +20 °C ambient temperature
