Home » Products » CHEMICAL HOSES » Chemical Hose

Chemical Hose

Chemical Hose
Chemical Hose
Product Code : 781-VV12
Brand Name : VV
Product Description

781-VV12-Chemical Hose

Application :
Suction and discharge of virtually all corrosive chemicals: strong acids. High aromatic solvents, chlorinated or oxygenized solvents. Aromatic hydrocarbons etc. for road and rail tankers, unloading bays, as well as mobile or fixed installations in chemical works, and associated industries.

 Design material

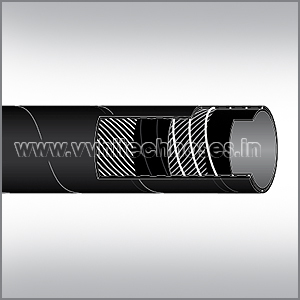

Technical Description : Inner Tube : UPE (Ultra high molecular weight polyethylene), black, smooth. Reinforcement : Synthetic textile with embedded steel helix. Cover : Chemical and weather resistant EPDM, Black, Fabric impression.

Properties:
Advantages : A versatile hose for a wide range of chemicals. Hose construction gives excellent bending radius. Smooth tube for easier washing out (up to 140° C during 30 minutes). Excellent resistance to ageing, atmospheric conditions and ozone. Easy to cut to be fitted with many types of coupling.

Temperature Range:
-30° C to + 100° C

ID

Wall

Thickness

OD

Working

Bursting

Max

Bending

Weight

Length

MM

MM

MM

Pressure

Pressure

Vacuum

Radius

Kg/M

M



Bar

Bar

Bar

MM





25.0      ±0.5

5.0

35.0      ±1.0

10

40

0.8

90

0.70

20-40

32.0      ±0.5

5.0

42.0      ±1.0

10

40

0.8

110

0.90

20-40

38.0

±0.5

5.5

49.0      ±1.0

10

40

0.8

130

1.00

20-40

45.0      ±0.5

5.5

56.0      ±1.0

10

40

0.8

155

1.20

20-40

50.0      ±0.7

6.0

62.0      ±1.5

10

40

0.8

170

1.30

20-40

55.0      ±0.5

6.0

67.0      ±1.5

10

40

0.8

190

1.45

20-40

65.0      ±0.8

6.0

77.0      ±1.5

10

40

0.8

220

1.75

20-40

75.0      ±0.8

6.5

88.0      ±1.5

10

40

0.8

250

2.20

20-40

80.0      ±0.8

6.5

93.0      ±1.5

10

40

0.8

350

2.45

20-40

89.0      ±0.8

6.5

102.0    ±1.5

10

40

0.8

400

2.70

20-40

100.0    ±0.8

7.0

114.0    ±1.5

10

40

0.8

500

3.05

20-40














































  1. Due to constant R and D dimensions and technical specifications are subject to change without prior notice.
  2. Material availability is subject to M.O.Q
